Classe 5 (S)

Rancilio Classe 5 Espresso Machine | 2 Group | Volumetric Dosing

Side view of the Rancilio Classe 5 espresso machine in Ice White, with 3 groups at traditional height with USB Volumetric dosing.

Classe 5 USB Volumetric, Ice White, 3 Group Traditional Group Height

Front view close-up of the Rancilio Classe 5 espresso machine's traditional height brew groups

Classe 5, Brew Group Closeup with Espresso

Front view of the Semi-Automatic Rancilio Classe 5 3 group espresso machine in Anthracite Black and traditional brew group height.

Classe 5 Semi-Automatic, Anthracite Black Side Panels, 3 Group

Closeup front-side view of the Rancilio Classe 5 espresso machine steam wand, steam c-lever, gauges and side panels.

Classe 5, Seam Wand, Steam C-Lever, Gauges, Side Panel Closeup

Back panel view of the Rancilio Classe 5 espresso machine in Anthracite Black

Classe 5 USB Volumetric, Anthracite Black Side Panels

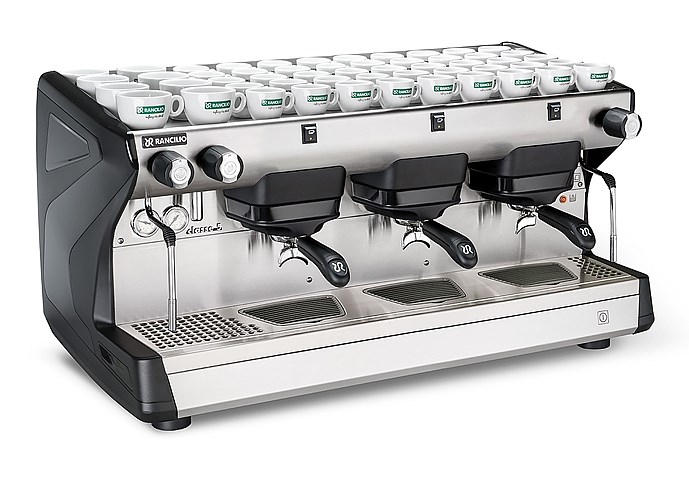

Classe 5 S | Anthracite Black |3 Group | Traditional Height | Semi-Automatic

Classe 5 Tall with USB, Anthracite Black, 2 Group with Taller Group Area, Volumetric Dosing

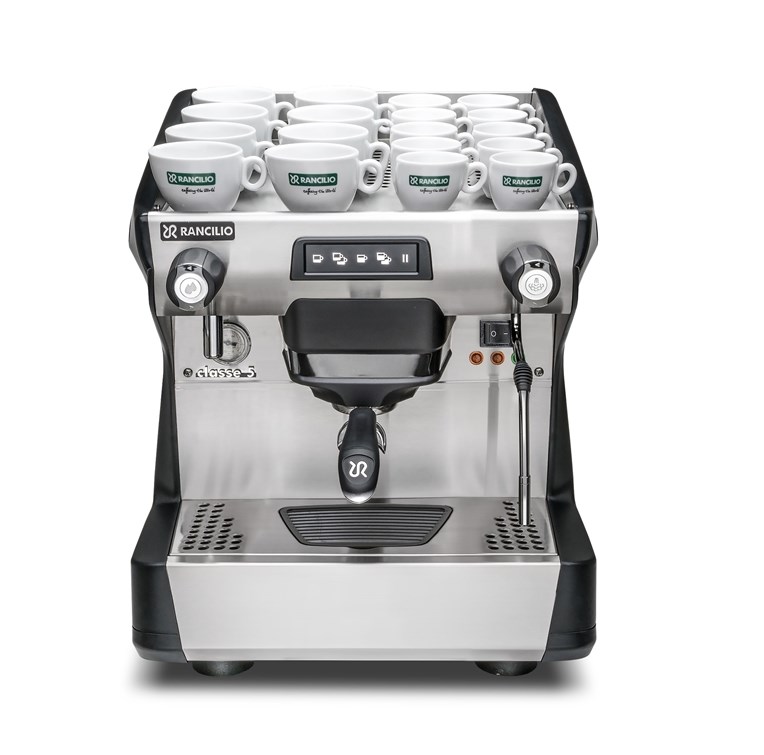

Front view of the Rancilio Classe 5 USB espresso machine in Anthracite Black, with 1 group at traditional height with volumetric dosing controls.

Classe 5 with USB, Anthracite Black, 1 Group Traditional Height, Volumetric Dosing

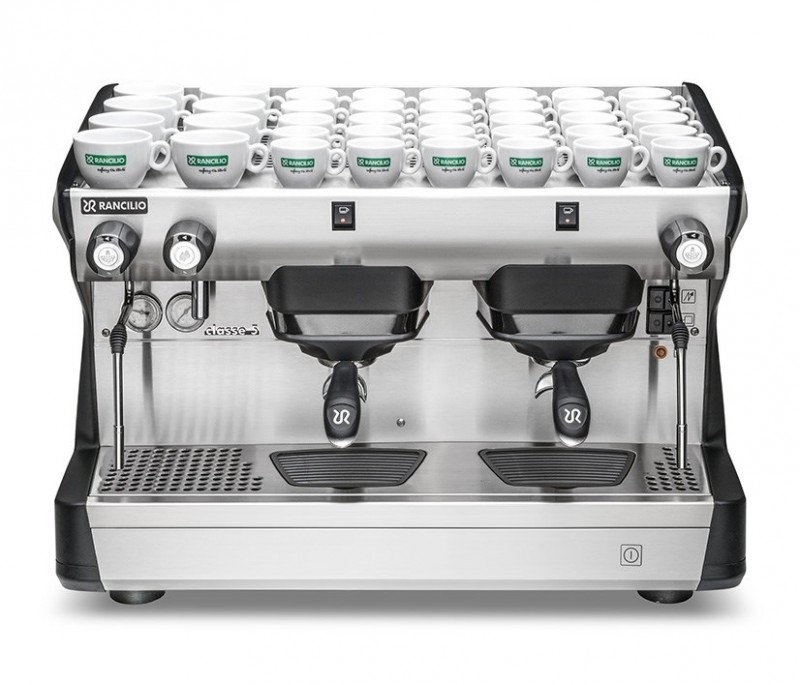

Classe 5 S | Anthracite Black | 2 Group Traditional Height | Semi-Automatic

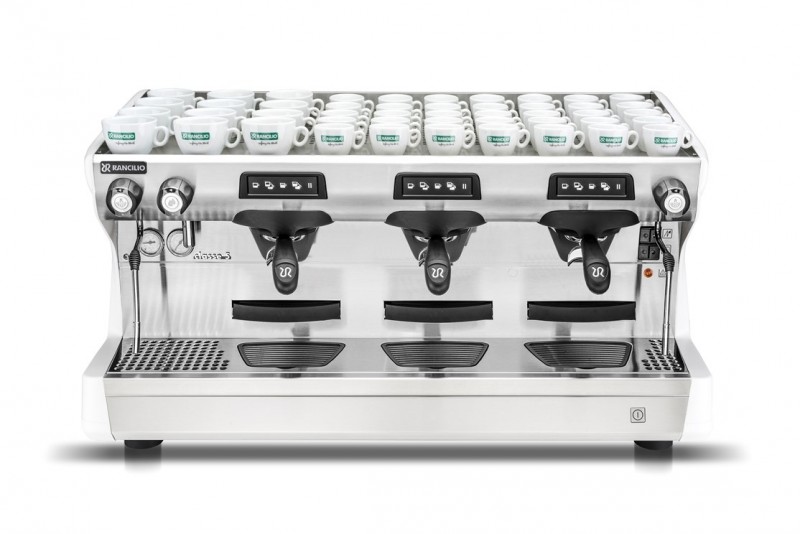

Classe 5 Tall with USB | Ice White | 3 Group with Larger Deck Area | Volumetric Dosing

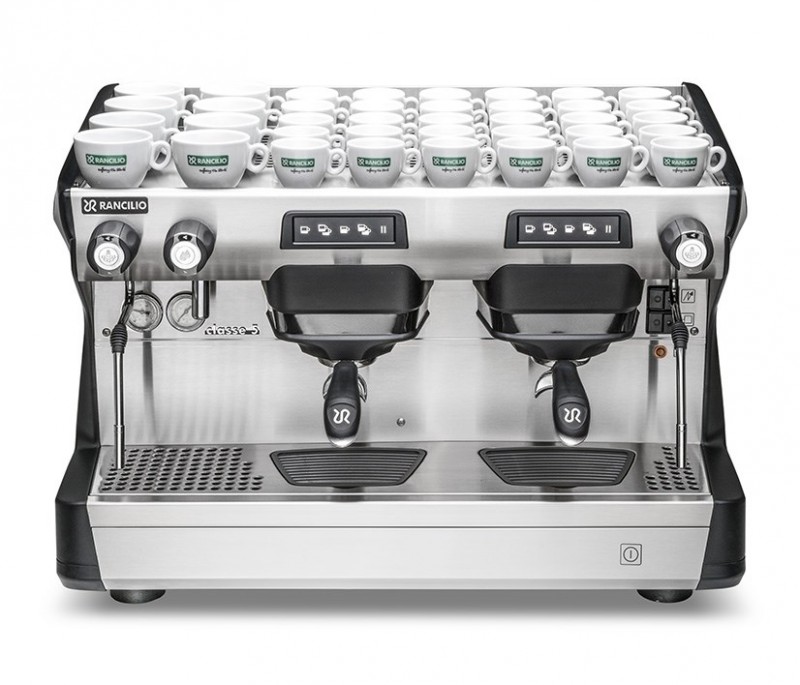

Rancilio Classe 5 USB | 2 Group Volumetric Dosing

Rancilio Classe 5

Reliable. Refined. Ready for Service.

Step 1:

Select a Model

1 Group Semi-Automatic (ST) Pour Over	$4,410
1 Group Semi-Automatic (S)	$5,040
2 Group Semi-Automatic (S)	$7,290
3 Group Semi-Automatic (S)	$9,540

Service Warranty Length

Service Warranty Length refers to ONLY the Service Provider's warranty agreement regarding labor, travel, and other expenses. The manufacture warranty remains the same regardless of what warranty length is chosen.

Available in Traditional and Tall Group Heights
Heating and Frothing Steam Wand (Optional)
Compact Model in 110 or 220 Volt
Superior Components and Design for Brewing and Steaming Stability

Step 2:

Select Your Options

Services Color Group Height Left Steam Wand Right Steam Wand Quantity

Request a Price Match

Payment Calculator

Overview

The Rancilio Classe 5 is one of the brand’s most popular commercial espresso machines—offering exceptional value without compromising performance. Designed for established cafés and coffee bars, the Classe 5 is the perfect blend of contemporary style, robust construction, and user-focused functionality.

With its brushed stainless-steel finish, streamlined controls, and upgradable features, the Classe 5 is built for environments where simplicity, reliability, and over-the-top customer service matter.

Key Features

Exceptional Brewing Performance

Brew Steady Group Heads
Rancilio’s latest group head design ensures superior temperature stability, resulting in more consistent espresso shots. Learn More

11-Liter Boiler with 4300W Element
The high-capacity boiler and powerful heating element prevent heat loss and ensure you never run out of steam during peak hours.

Independent Heat Exchanger System
Brew and steam simultaneously with zero compromise in performance.

Barista-Centered Design

Available in Two Models
Choose between: Semi-Automatic (barista-controlled) or Volumetric Dosing (programmable for consistency and speed)

Upgraded Keypads
Newly designed for increased durability and tactile response—even in demanding environments.

Backlit Control Panel & Barista Deck Lighting
Improves visibility and adds a touch of elegance, especially useful in low-light settings.

Tilted Portafilters
Ergonomically designed to reduce barista strain and allow for level tamping directly on the counter.

C-lever Steam Wand Handle
Lock the wand in place for hands-free steaming. Push down to purge. A simple design that saves time and reduces wrist strain—ideal for high-volume use.

Optional iSteam Wand
Automates milk frothing for consistent microfoam—perfect for alternative milks and busy workflows.

Smart Accessories & Technology

iSteam Heating and Frothing Steam Wand: Automatic steam wand that allows you to program for both foam texture as well as desired temperature. This all-in-one steam wand is a good choice for those wishing to simplify the drink preparation process freeing hands for other activities. Note: iSteam will take longer than heating and frothing manually.

USB Port (Volumetric Models Only)
Easily back up settings, download usage data, or update software—an excellent tool for both owners and technicians.

5-Key Drink Programming (USB Only)
Customize up to four drinks per grouphead with programmable dosing for consistent shots. The fifth key offers manual control, group rinsing, or can be disabled as needed.

Cup Warmer (Optional)
While the insulated boiler naturally warms your cups, an optional heated tray is available for added heat retention.

Looking for More?

If you’re ready for advanced features like a digital display, shot timer, or enhanced barista tools, consider upgrading to the Rancilio Classe 7.

Features

Core Brewing Features

Temperature Control: Mechanical adjustments only. No operator controls.

Pressure Control: Pre-Infusion (Volumetric Dosing Only): This feature comes disabled but can be enabled in advanced programming. Learn More

Workflow & Usability Features

Streamline operations and improve barista efficiency.

Cleaning Program: Not available. Each group must be cleaned manually and individually.

Group Rinse (Purge): Not Available

Display: Not Available

Shot Timer: Not Available

Drain Tray Design: Not Adjustable

Group/Deck Height: Available in Traditional and Tall.

Hot Water Wand: No temperature or volume adjustment.

Energy Settings: none

Steam Wand Options

Manual steam wand: Standard

Cool Touch Steam Wand: Optional

Heating and Frothing Wand: iSteam

Control over Temperature

Pressure Control

Pre-Infusion (Volumetric Dosing Only): This feature comes disabled but can be enabled in advanced programming.
Soft Infusion System: Provides you peace of mind over quality and product consistency, no matter who operates your machine. Soft Infusion System addresses a common concern for espresso businesses. Water hitting coffee grounds at full pressure can act like a drill creating holes through the coffee bed. These channels will create an uneven coffee saturation which will effect your brewing time and the taste of your coffee. The purpose of the soft infusion system is to postpone water at high pressure from initially being introduced to the coffee grounds. The Soft Infusion Systiem is made up of a chamber inside the brew group which is placed before the shower screen. When you begin to brew, the water enters the chamber first, which dramatically reduces the force of the water down to just a gentle wetting on the the gounds bed. This wetting prepares the grounds before normal brewing pressure. Only once the chamber fills, will the machine operate at full pressure.(appoximately 9 Bar). By slowly introducing water to the coffee bed, this also allows the water to evenly saturate your coffee, correcting any fissures or air pockets caused by uneven tamping.
USB (Volumetric Dosing Only): Download information from your espresso machine to a USB stick for counters, errors and values for business and technical analysis. Back up feature, saves only programming values if for some reason they were accidentally erased, electronics were replaced or for duplication on multiple machines. Also used by technicians for necessary software updates.

Documents

Classe 5 Leaflet

Classe 5 S Spec Sheet

Classe 5 S 1 Group Spec Sheet

Group	Depth	Height	Width	Weight	Watts	Volts	Boiler Vol.
1 Group	22"	21"	16"	73lb	1600W	110-120V	4 Liters
2 Compact	22"	21"	24"	106lb	3000W	208-220V	5 Liters
2 Group	22"	21"	31"	122lb	4300W	208-220V	11 Liters
3 Group	22"	21"	40"	155lb	6000W	208-220V	16 Liters

Preventative Maintenance Recommendation
Machines serving 250 beverages or more

Quarterly

Replace Group Gaskets

Replace Shower Screens (or as needed)

Annually

Re-build Hot water Valve
Re-build Steam Valves

Replace Brew Baskets
Replace Vacuum Valve

Biennial (2 years)

Replace Pressure Switch
Replace Porta-Filters (2-3 years)
Replace Brew Valve (2-3 years)

Triennial (3 years)

Replace Safety Valve
Re-build Cold Valve Block Assembly

Warranty

Rancilio models include a one year limited parts warranty. Your warranty will begin upon the date of installation as stated in the installation form or 90 days from the date of purchase, whichever comes first. The Rancilio Group warrants that the equipment it has manufactured will be commercially free of defects in material and workmanship within the applicable warranty period. These warranties do not apply to any equipment that, in the Rancilio Group’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, damage, or casualty. For more information on your equipment warranty and a complete list of warranty exclusions, please reference the full warranty statement.

ESN Extended Warranty: Our extended warranties come complimentary with your purchase and are provided to enhance Rancilio's product warranty. Your ESN Extended Warranty is clearly stated on your invoice and will address labor, travel, and part service . Warranties are adjustable and will vary from machine to machine.
