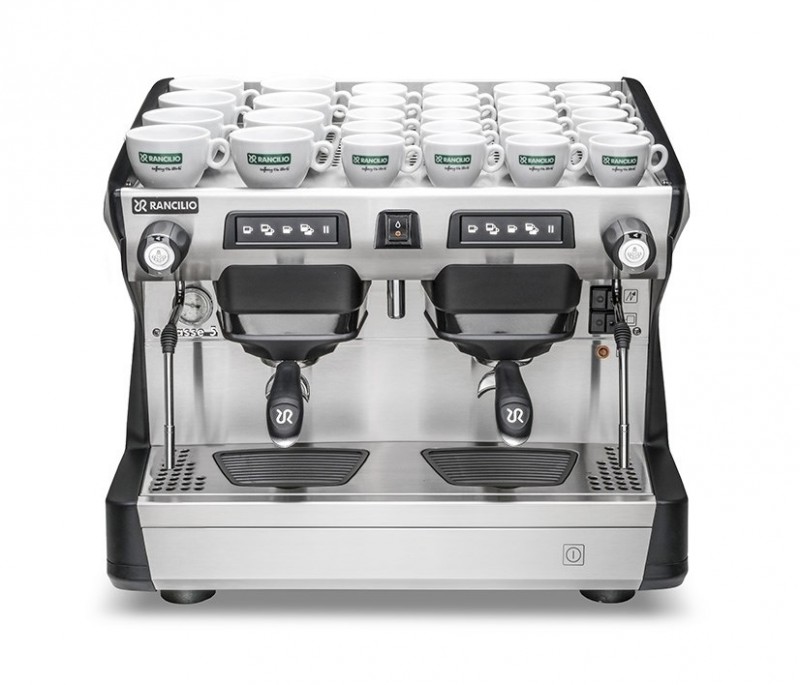

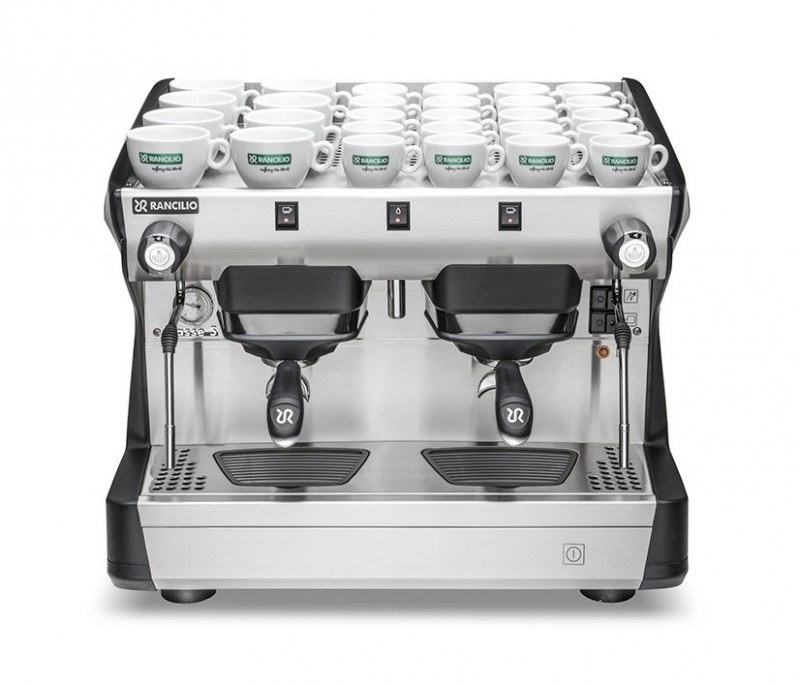

Classe 5 Compact
Smaller Foot Print
Rancilio Classe 5 compact size is perfect for small work spaces and kiosks.
Overview
The Rancilio Classe 5 Compact is a reliable and versatile espresso machine, ideal for mobile or catering businesses seeking to deliver quality beverages. Its distinctive yet simplistic design combines aesthetics with functionality, ensuring it stands out while remaining practical. Ergonomically designed for barista comfort, the Classe 5 Compact is easy to operate and can be conveniently placed wherever great-tasting coffee is needed.
The Basics
| Group Height | Traditional Height - All models | Tall - USB models only |
|---|---|
| Color Options | Ice White, Stone Grey, Anthracite Black |
| Models | Classe 5, Classe 5 Compact |
| Dosing Operation | Semi-Automatic, USB Volumetric Dosing |
| Steam Wand | Manual Wand | Cool Touch | iSteam Heating and Frothing (Optional) |
| Other Options | Cup Warmer |
Features
Core Brewing Features
- Temperature Control: Mechanical adjustments only. No operator controls.
- Pressure Control: Pre-Infusion (Volumetric Dosing Only): This feature comes disabled but can be enabled in advanced programming. Learn More
Workflow & Usability Features
Streamline operations and improve barista efficiency.
Automatic Group Rinse (Purge): Not available-Group rinse is barista initiated.
Cleaning Program: Not available. Each group must be cleaned manually and individually.
Display and Shot Timer: Not Available
Drain Tray Design: Not Adjustable

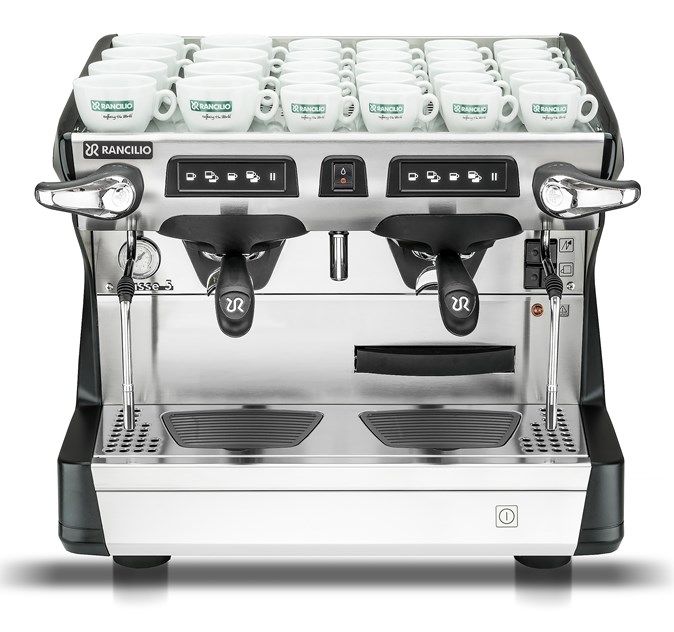

Group/Deck Height: Available in Traditional and Tall (USB)
Hot Water Wand: No temperature or volume adjustment.
Energy Settings: none
Steam Wand Options
Manual steam wand: Standard
Cool Touch Steam Wand: Optional
Heating and Frothing Wand: iSteam
Control over Temperature
Pressure Control — Pre-Infusion (Volumetric Dosing Only)
This feature is disabled by default but can be enabled in advanced programming. When activated, water is initially introduced to the coffee at full brewing pressure, then the brew valve closes briefly to allow the coffee bed to fully saturate and bloom before the shot continues. The length of this pause is programmable, giving operators control over the extraction profile. This results in more even saturation of the coffee puck, reduced channeling, improved consistency from shot to shot.
Soft Infusion System: Provides you peace of mind over quality and product consistency, no matter who operates your machine. Soft Infusion System addresses a common concern for espresso businesses. Water hitting coffee grounds at full pressure can act like a drill creating holes through the coffee bed. These channels will create an uneven coffee saturation which will effect your brewing time and the taste of your coffee. The purpose of the soft infusion system is to postpone water at high pressure from initially being introduced to the coffee grounds. The Soft Infusion Systiem is made up of a chamber inside the brew group which is placed before the shower screen. When you begin to brew, the water enters the chamber first, which dramatically reduces the force of the water down to just a gentle wetting on the the gounds bed. This wetting prepares the grounds before normal brewing pressure. Only once the chamber fills, will the machine operate at full pressure.(appoximately 9 Bar). By slowly introducing water to the coffee bed, this also allows the water to evenly saturate your coffee, correcting any fissures or air pockets caused by uneven tamping.
USB (Volumetric Dosing Only): Download information from your espresso machine to a USB stick for counters, errors and values for business and technical analysis. Back up feature, saves only programming values if for some reason they were accidentally erased, electronics were replaced or for duplication on multiple machines. Also used by technicians for necessary software updates.
Documents
Classe 5 Model Overview
Classe 5 S Spec Sheet
Classe 5 USB Compact Spec Sheet
Classe 5 USB Spec Sheet
| Group | Depth | Height | Width | Weight | Watts | Volts | Boiler Vol. |
|---|---|---|---|---|---|---|---|
| 1 Group | 22" | 21" | 16" | 73lb | 1600W | 110-120V | 4 Liters |
| 2 Compact | 22" | 21" | 24" | 106lb | 3000W | 208-220V | 5 Liters |
| 2 Group | 22" | 21" | 31" | 122lb | 4300W | 208-220V | 11 Liters |
Warranty
Rancilio Espresso Machines Warranty
Rancilio espresso machines come with a one-year limited parts warranty. This warranty begins on the date of installation, as recorded on the installation form, or 90 days from the date of purchase, whichever occurs first. Rancilio Group guarantees that its equipment will be commercially free of defects in materials and workmanship during the applicable warranty period.
However, this warranty does not cover equipment that, in Rancilio Group's judgment, has been subjected to misuse, neglect, alteration, improper installation or operation, inadequate maintenance or repair, accidental damage, or other forms of casualty. For more details on your warranty and a complete list of exclusions, please refer to the full warranty statement.
ESN Extended Warranty
ESN provides complimentary extended warranties with your purchase to supplement Rancilio's product warranty. Your ESN Extended Warranty, as outlined on your invoice, covers labor, travel, and parts service. These extended warranties are adjustable and vary based on the specific machine purchased, ensuring tailored protection for your investment.
